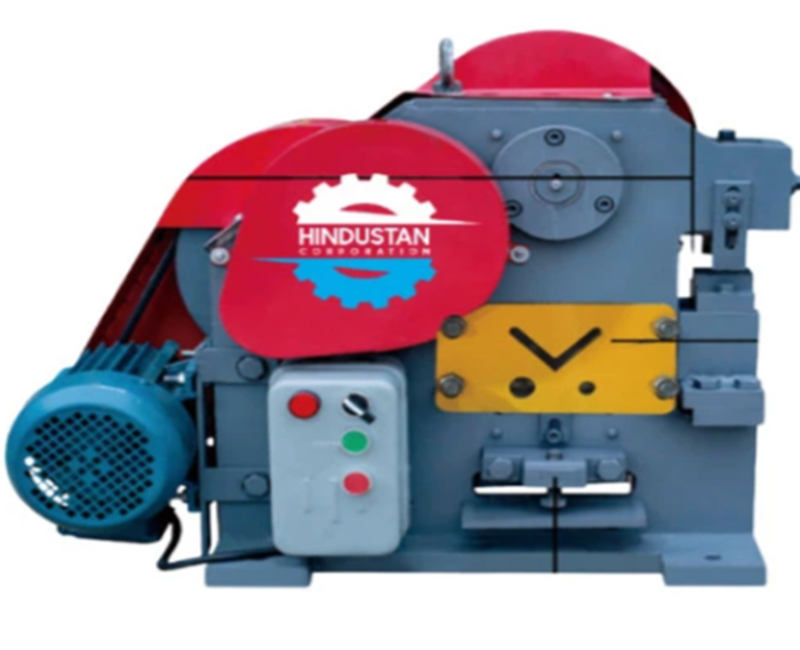

The Multi Function Angle Bar Sheet Punching, Cutting and Shearing Machine is a high-performance industrial machine engineered for versatile metal fabrication tasks. It combines multiple operations such as punching, shearing, cutting, and notching in a single compact system, making it highly efficient for workshop and factory use.This machine is specially designed to handle angle bars, flat bars, round bars, channels, and steel sheets with high precision and speed. Built with a heavy-duty steel frame and advanced hydraulic/mechanical power system, it ensures stable operation, long service life, and minimal maintenance requirements.Equipped with multiple working stations, the machine allows simultaneous operations, reducing production time and labor costs. It delivers clean cuts, accurate holes, and smooth finishing, making it ideal for structural steel fabrication, construction projects, and industrial metal processing.Key features include high accuracy, strong punching force, user-friendly controls, and reliable performance under continuous operation. This all-in-one solution significantly improves productivity and efficiency in metalworking industries.

Machine Type

• Multi-function hydraulic/mechanical ironworker machine
• Combined punching, shearing, cutting, and notching system

Material Processing Capacity

• Angle steel cutting: up to approx. 100 × 100 × 10 mm to 150 × 150 × 12 mm
• Flat bar shearing: up to approx. 300 × 20 mm to 460 × 20 mm
• Round bar cutting: up to Ø 30–45 mm
• Square bar cutting: up to 30 × 30 mm – 40 × 40 mm
• Sheet / plate punching thickness: up to 12–20 mm
• Channel / beam cutting: light to medium structural sections

Punching Unit

• Maximum punching diameter: 22–30 mm (standard)
• Punching force: 45–120 tons (depending on model)
• Quick die change system
• Round / square / oval hole capability

Shearing Unit

• Angle shearing: 90° and 45° cutting capability
• Clean cut with minimal deformation
• Replaceable high-carbon steel blades
• Adjustable material holding clamps

Working Stations

• Punching station
• Flat bar shearing station
• Angle steel cutting station
• Round & square bar cutting station
• Notching station (optional)

Hydraulic System

• Hydraulic driven high-pressure system
• Stroke rate: 8–30 strokes/min
• Stable and continuous operation
• Low maintenance design

Structure

• Heavy-duty welded steel frame
• High rigidity and vibration resistance
• Long service life industrial build

Motor Power

• Approx. 3 kW – 7.5 kW (varies by model)

Machine Weight

• Approx. 1000 kg – 5000 kg (based on tonnage capacity)

Applications

• Steel fabrication workshops
• Construction and infrastructure work
• Marble & tiles supporting metal framework structures
• Industrial metal processing units
