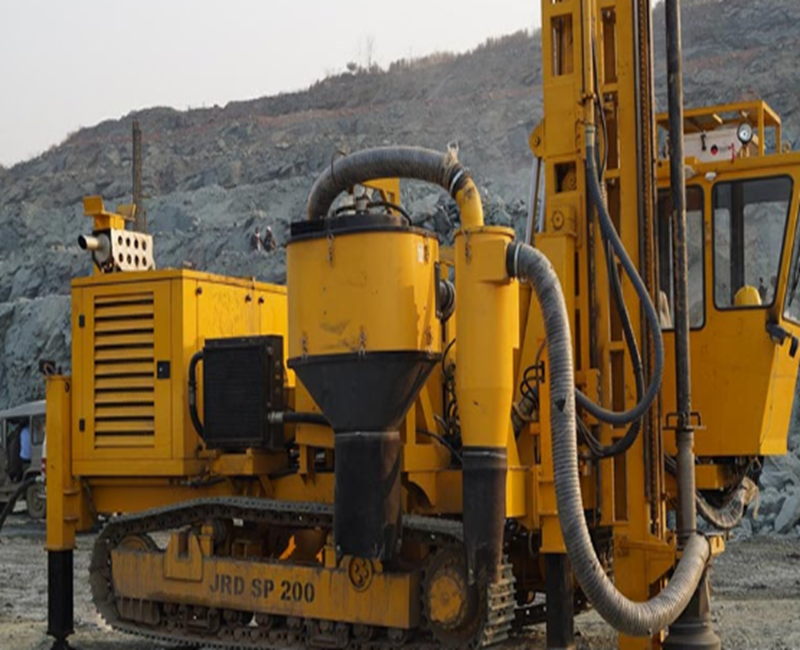

Crawler Drill SP 200 is a heavy-duty hydraulic crawler-mounted blast hole drilling rig designed for high-efficiency rock drilling in marble, granite, quarrying, mining, and construction material industries. It is engineered with a strong undercarriage and advanced hydraulic system to ensure maximum stability, durability, and consistent performance in demanding field conditions.This model is designed for large-scale quarry and mining operations, offering powerful penetration in hard rock formations and reliable drilling accuracy for blast hole applications. The crawler-mounted structure allows smooth mobility on rough terrain, while the hydraulic feed and rotation system ensures controlled, high-torque drilling with reduced operator effort.Crawler Drill SP 200 is widely used for marble and granite quarry blasting, stone block extraction, and infrastructure development projects. It is built for continuous heavy-duty operation, delivering high productivity, long service life, and efficient fuel utilization in challenging environments.

Technical Specifications:

• Model: SP 200
• Type: Hydraulic crawler-mounted blast hole drilling rig
• Drilling Method: Down-the-hole (DTH) / rotary blasting drilling system
• Hole Diameter Range: 115 mm – 165 mm
• Drilling Depth: Up to ~50 m (single pass up to ~7.1 m)
• Weight: Approx. 22,000 kg
• Engine Type: Diesel hydraulic power system
• Feed System: Heavy-duty hydraulic chain feed
• Rotation System: High-torque hydraulic rotation unit
• Mobility: Crawler track system for rough terrain movement
• Control System: Operator control panel / cabin (optional enclosed cabin)

Performance Features:

• High penetration drilling in hard rock formations
• Strong and stable crawler-mounted structure
• Suitable for continuous heavy-duty quarry operations
• Efficient hydraulic system for smooth drilling control
• Designed for high productivity and reduced downtime

Applications:

• Marble and granite quarry drilling
• Tile industry raw material extraction
• Blast hole drilling for stone blocks
• Mining and open-cast operations
• Construction and infrastructure projects

Packaging:

• Supplied as fully assembled crawler drilling rig
• Transport-ready heavy-duty unit with protective covering
• Optional drill rods, bits, and accessories available
