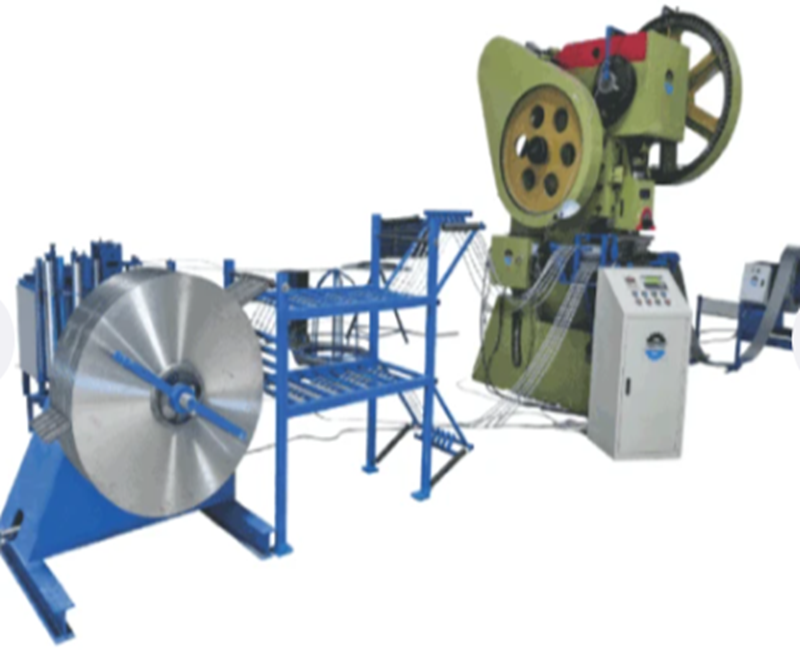

The Automatic Concertina Wire Making Machine is an advanced industrial solution designed for producing high-quality razor concertina coils used in security fencing systems. The machine automatically processes high-tensile galvanized steel wire and razor strips to form sharp, durable, and uniform concertina coils.Equipped with PLC control and precision automation, it ensures accurate feeding, punching, cutting, and coiling operations with minimal manual intervention. This results in consistent product quality, high efficiency, and reduced production time.It is widely used in manufacturing fencing materials for defense areas, borders, airports, industrial sites, prisons, and restricted zones where maximum security is required. The machine supports high-speed production, low maintenance, and long operational life, making it ideal for large-scale fencing wire manufacturing industries.
Technical Specifications
-
Machine Type: Fully Automatic Concertina / Razor Wire Making Machine
-
Material Used: GI (Galvanized Iron) strip / Stainless steel strip + high tensile core wire
-
Strip Thickness: 0.3 mm – 0.8 mm
-
Core Wire Diameter: 2.0 mm – 5.0 mm
-
Blade Type: BTO / CBT razor profiles (customizable molds)
Performance Details
-
Production Speed: 80 – 150 cycles/min (varies by model)
-
Output Capacity: Approx. 1.5 – 2.5 tons/day (model dependent)
-
Coil Diameter: 450 mm – 960 mm (adjustable)
-
Strip Feeding System: Automatic decoiler + feeding unit
-
Punching System: High precision hydraulic / mechanical press
Power & Operation
-
Power Requirement: 5 HP – 10 HP
-
Voltage: 380V / 415V / 440V, 3 Phase
-
Control System: PLC-based automatic control panel
-
Operators Required: 1–2 persons per shift
Machine Features
-
Fully automatic punching + coiling system
-
High-speed continuous production
-
Uniform blade shape and strong coil formation
-
Low maintenance and energy efficient
-
Heavy-duty industrial frame for long life
Applications
-
Military fencing
-
Border security
-
Airports & railway protection
-
Factories & warehouses
-
High-security residential & industrial zones
