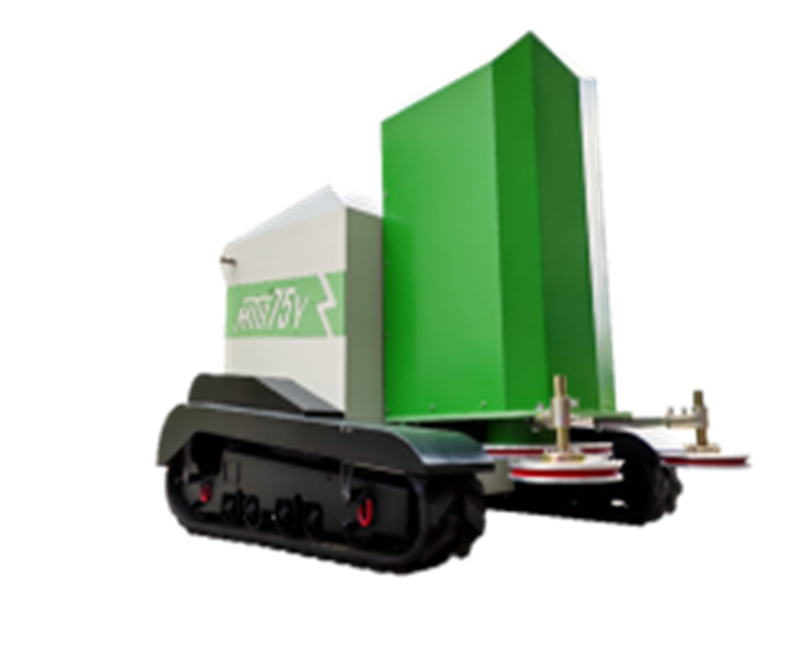

The Tracked Wire Saw is a robust and high-performance industrial cutting machine designed for precision stone cutting in quarries, workshops, and construction sites. Equipped with a diamond wire mounted on a tracked chassis, it provides mobility across uneven terrain while maintaining stable and accurate cutting performance. This makes it ideal for large stone block extraction, slab cutting, and tile sizing.

Tracked Wire Saw – Product Specifications

 Drive & Power

• Main Motor Power: 22 kW – 75 kW (30 HP – 100 HP) depending on model capacity
• Power Type: Electric / Diesel generator compatible
• Voltage: 380 V / 415 V three‑phase (industrial standard)
• Control System: PLC/Digital control panel with emergency stop

 Wire & Cutting System

• Wire Type: Diamond combination wire with industrial diamond beads
• Wire Diameter: 8 mm – 12 mm (thicker for granite/stone, thinner for tile/marble slabs)
• Wire Length: 20 m – 100 m (longer for deeper cuts)
• Beads per Meter: 28 – 40 beads/m (higher density = faster cutting)
• Cutting Speed (Wire Speed): 15 – 35 m/sec (adjustable)
• Cutting Precision: ± 0.5 mm – 2 mm depending on material and feed settings

 Mobility & Track System

• Track Type: Heavy‑duty crawler tracks for stable movement on uneven terrain
• Track Drive: Hydraulic or electric crawler drive
• Mobility: Forward, reverse, and lateral movement for positioning
• Ground Clearance: ~ 150 mm – 300 mm (varies by model)

 Frame & Construction

• Frame Material: High‑strength welded steel for durability
• Protection: Waterproof/e dust‑proof electrical housings
• Weight: 1,500 kg – 4,500 kg depending on power and build
• Dimension (L×W×H): Typical range 3,000 mm × 1,200 mm × 1,800 mm

 Cooling & Lubrication

• Water Cooling: Yes — for dust suppression & extended wire life
• Flow Control: Adjustable water flow for different stone hardness

 Cutting Performance
