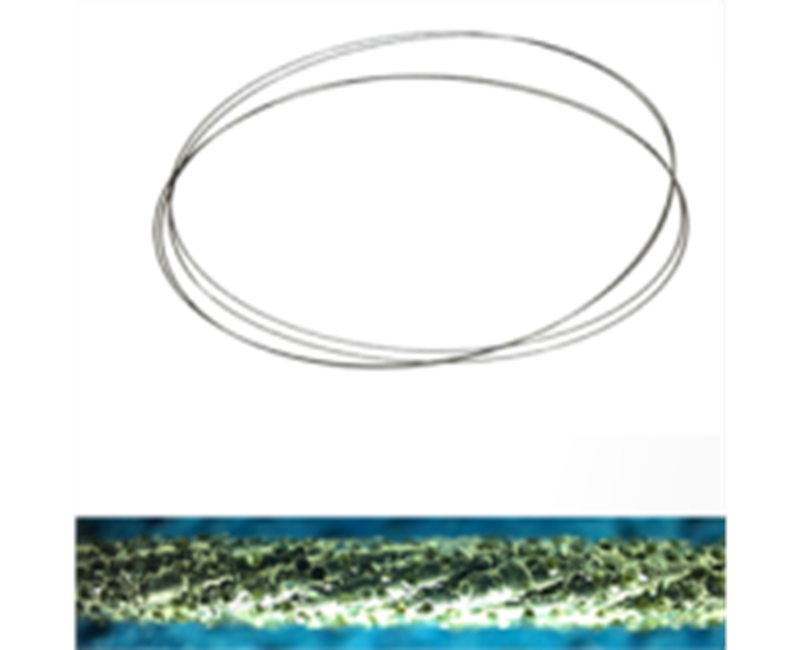

The Ring Diamond Wire Saw is an advanced cutting machine designed for high-precision stone processing in quarries, workshops, and construction sites. Its ring-shaped diamond wire configuration ensures uniform cutting pressure, delivering clean, precise cuts on a wide variety of materials including marble, granite, limestone, and tiles. This design improves efficiency, reduces material waste, and allows cutting of large blocks, slabs, and tiles with minimal effort.

Ring Diamond Wire Saw – Product Specifications (for Marble & Tiles)

 Wire Structure & Beads

• Core Material: High‑tensile multi‑strand steel cable with industrial diamond beads embedded for abrasive cutting.
• Bead Diameters: Common bead sizes include 6.3 mm, 7.3 mm, 8.2 mm, 8.8 mm, 9 mm, 10.5 mm, 11 mm, 11.5 mm, 12 mm and 12.5 mm — smaller sizes suit marble and tile, larger sizes suit harder stones.
• Beads per Meter: Typically 33–40 beads/m; higher bead count increases cutting contact points and efficiency.
• Connection/Spacer Types: Plastic, rubber, or spring spacers separate beads to manage flexibility and cooling.

 Physical Dimensions

• Wire Diameter Range: ~5 mm – 12 mm — thinner wires (5–7 mm) are ideal for precise tile and marble cutting, thicker wires (8–12 mm) for tougher stone cutting.
• Wire Length: Standard lengths ~20 – 100 m depending on application and machine compatibility; longer lengths are used for deep slab or block cutting.

 Cutting Performance

• Cutting Speed (Line Speed): Adjustable based on material type; typical range for marble and tiles is 8 – 15 m/min for delicate stone, and 15 – 25 m/min for harder stone.
• Cooling & Lubrication: Water feed is essential to cool the wire, reduce dust, and prevent overheating.
• Kerf (Cut Width): Narrow kerf ensures minimal material waste, especially important with expensive marble and tile.

 Material Compatibility

Ring Diamond Wire Saws are designed for precision cutting of:
Marble slabs and blocks — delicate cutting with reduced chipping.
Tiles and decorative stone components — fine cuts for architectural or finish work.
Granite and limestone (optional) — heavier wire and grit selection improves durability.
Construction stone elements — for customized cuts in stone facades and installation pieces.

 Typical Application Notes

• Precision Cutting: The combination of bead density and smaller diameter wires enables clean cuts with minimal surface damage.
• Versatility: Ring‑configured diamond wire can be looped around material or threaded through drilled holes for angled or blind cuts.
• Enhanced Efficiency: Higher bead counts and optimized bead spacing balance cutting speed and surface finish.
