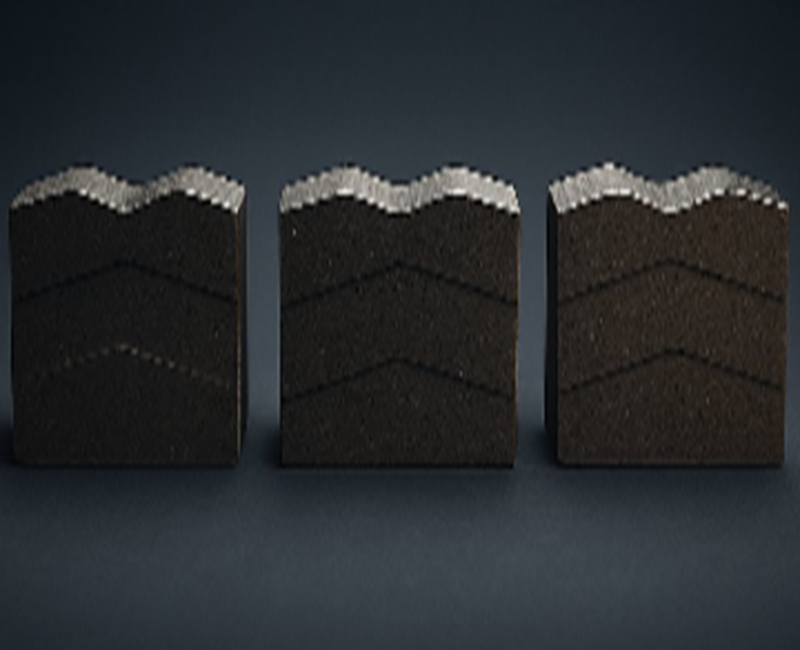

Multi Blade Diamond Segments are high-quality cutting components designed for use in multi-blade gang saw systems for efficient processing of marble, granite, sandstone, and other natural stones. Manufactured using premium industrial-grade diamonds and advanced metal bond technology, these segments deliver superior cutting performance, high precision, and extended service life.These diamond segments are engineered to ensure smooth and fast cutting with minimal material wastage and reduced chipping. Their strong bonding structure provides excellent resistance to wear, heat, and pressure, making them ideal for continuous heavy-duty stone cutting operations.Suitable for large-scale stone processing industries, Multi Blade Diamond Segments are widely used in quarries and fabrication units for producing uniform slabs with high-quality surface finish. They ensure stable performance even under high-speed and high-load cutting conditions.

General Information

• Product Type: Diamond Segments for Multi Blade (Gang Saw / Multi Cutter System)
• Application: Marble, Granite, Sandstone, Limestone, Quartz, Natural Stone, Ceramic Tiles
• Usage: Block cutting into slabs for construction & tile production
• Cutting Method: Wet cutting (water cooling required)

 Construction Details

• Material: Industrial synthetic diamond + metal powder bond
• Bond Composition: Cobalt, Iron, Copper, Nickel alloy matrix
• Manufacturing Process: Hot pressing / Cold pressing + Sintering
• Segment Types: Sandwich, Multi-layer, Taper, Box type
• Bond Hardness: Soft / Medium / Hard (based on stone type)

 Size & Dimensions

• Segment Size Range:
  • Length: 20 mm – 40 mm
  • Width: 4 mm – 10 mm
  • Height: 8 mm – 15 mm (can be customized)
• Blade Compatibility: 600 mm – 1600 mm multi-blade gang saw systems
• Segment Count: 60 – 120 pcs per blade set (depending on diameter)

 Performance Specifications

• Cutting Speed: High-speed slab production
• Efficiency: Smooth and continuous cutting with low resistance
• Feed Rate: Optimized for quarry block cutting
• Cooling Requirement: Continuous water cooling for heat control
• Output Quality: Uniform slab thickness with smooth surface finish

 Material Compatibility

• Marble blocks
• Granite blocks
• Sandstone
• Limestone
• Quartz stone
• Ceramic tile base materials

 Key Features

• High diamond concentration for fast cutting
• Strong metal bond for long service life
• Stable performance in multi-blade machines
• Reduces chipping and material wastage
• High resistance to heat and wear
• Designed for continuous industrial production
• Produces smooth and accurate slab surfaces

 Applications

• Marble & granite slab production units
• Stone processing industries
• Quarry block cutting operations
• Tile manufacturing plants
• Large-scale construction material production
