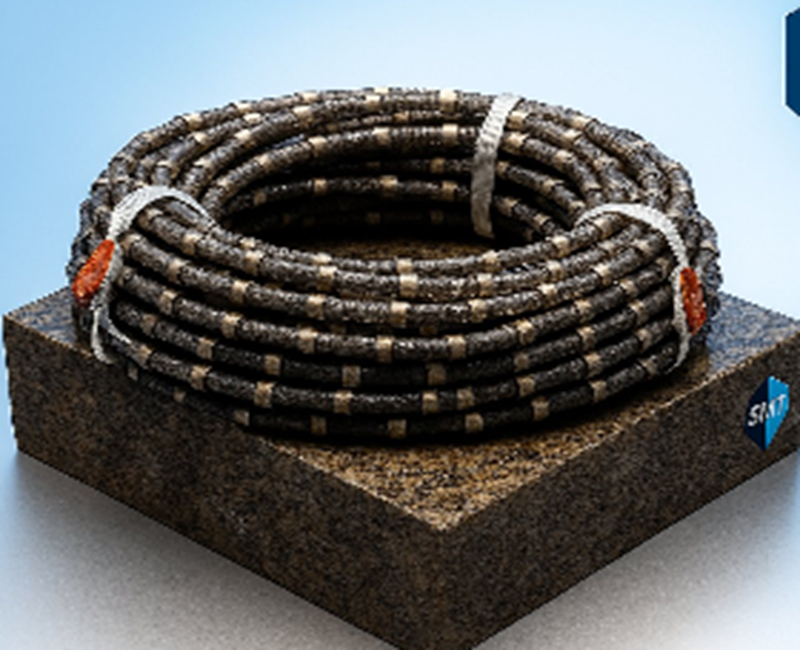

The Mono Wire Saw Chain is a premium-grade diamond cutting wire designed for efficient and precise cutting of marble, granite, natural stone, and reinforced concrete. Engineered with high-tensile steel cable and industrial-grade diamond beads, it delivers superior cutting performance even in the toughest quarry and construction environments.This wire saw chain is specially designed for mono wire saw machines, ensuring smooth operation, high cutting speed, and excellent accuracy with minimal material wastage. Its advanced construction provides strong resistance to wear, heat, and tension, making it suitable for continuous heavy-duty use.The Mono Wire Saw Chain offers stable performance with low vibration and reduced noise, improving operator safety and productivity. It is widely used in stone quarries, processing plants, and large-scale construction projects.
General Information
-
Product Type: Mono Diamond Wire Saw Chain / Rope
-
Application: Marble, Granite, Natural Stone, Reinforced Concrete Cutting
-
Machine Type: Mono Wire Saw Machine compatible
-
Cutting Method: Wet cutting (water cooling recommended)
Construction Details
-
Core Material: High-tensile steel stranded wire cable
-
Cutting Element: Industrial diamond beads
-
Bead Bond Type: Sintered / Electroplated (depending on grade)
-
Spacer Type: Rubber / Spring / Rubber + Spring combination
-
Bead Spacing: Uniform spacing for smooth cutting performance
-
Wire Structure: Flexible multi-strand steel for high tension strength
Size & Dimensions
-
Standard Length: 50 meters (custom lengths available)
-
Wire Diameter Range: 6 mm – 11.5 mm (based on application)
-
Beads per Meter: Approx. 36 – 40 beads/meter (typical industrial standard)
-
Kerf Width (Cut Thickness): ~8 mm – 12 mm
Performance Specifications
-
Line Speed: 20 – 35 m/s (depends on machine & stone hardness)
-
Cutting Efficiency: High-speed precision cutting with minimal wastage
-
Cooling Requirement: Continuous water cooling for heat & dust control
-
Operating Type: Continuous loop wire system (mono setup)
Material Compatibility
-
Marble blocks
-
Granite blocks
-
Sandstone
-
Limestone
-
Reinforced concrete structures
Key Features
-
High cutting precision with smooth finish
-
Low vibration and stable operation
-
High resistance to wear and heat
-
Long service life under heavy-duty use
-
Suitable for quarrying and industrial stone processing
-
Reduces material wastage compared to traditional cutting
