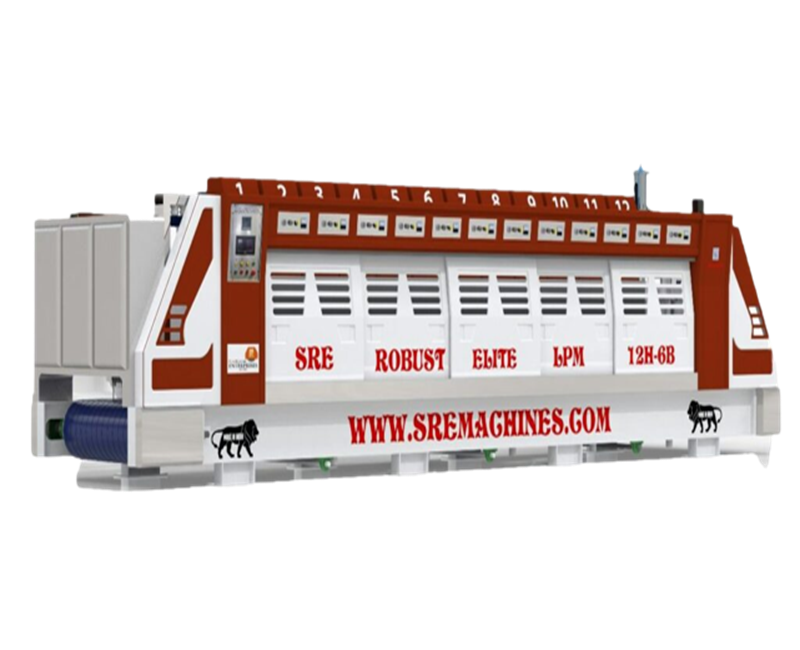

The Robust Series Line Polish Machine (Flicker Head) is a heavy-duty automatic polishing system designed for high-precision finishing of granite, marble, and engineered stone slabs. Built with a strong industrial structure, it ensures stable performance, high output, and long service life even in continuous production environments.It is equipped with a multi-head flicker polishing system (commonly 6-brick Italian/industrial type heads) that delivers uniform surface polishing with mirror-like finish quality. The machine uses PLC-based automation, automatic slab sensing, and centralized lubrication to reduce manual effort and improve efficiency. The robust bridge movement system and high-torque motors ensure smooth operation and consistent polishing pressure across slabs.Designed for large-scale stone processing units, this machine supports various head configurations (9, 12, 16 or more heads depending on model) and is optimized for high productivity with low maintenance requirements.

Product Specifications

 Application

• Suitable for polishing marble slabs, granite slabs, and ceramic/stone tiles
• Used in construction material finishing industry
• Produces mirror, glossy, and calibrated surface finish

 Machine Structure

• Heavy-duty CNC fabricated steel body
• High rigidity bridge design for vibration-free operation
• Reinforced conveyor bed for continuous slab movement
• Industrial-grade anti-rust coating

 Flicker Head System

• Multi-brick Flicker Head (6-brick / Italian type or equivalent)
• 9 / 12 / 16 / 20 head configurations available
• Individual pneumatic pressure control for each head
• Automatic head lifting & surface adjustment

 Working Capacity

• Slab width: 600 mm to 2200 mm (model dependent)
• Slab thickness: 10 mm – 60 mm
• Continuous conveyor-based feeding system
• Variable speed control for polishing cycle

 Power & Performance

• Main motor power: 7.5 kW – 11 kW per spindle (approx.)
• Total machine power: 100 kW – 200+ kW (depending on heads)
• Conveyor speed: 0 – 3.5 m/min adjustable
• High productivity for mass production lines

 Utility Requirements

• Water consumption: 15–25 L/min per head
• Central water cooling & slurry removal system
• Dust & splash protection system

 Automation Features

• PLC-based control system with HMI touch panel
• Auto slab detection & edge scanning system
• Automatic lubrication system
• Error alarm & production monitoring
• Memory function for slab profiles

 Polishing Capability

• Rough grinding → semi-polishing → mirror finishing in single line
• Compatible abrasives: diamond, resin, metal bond, abrasive bricks
• Suitable for:
  • Granite slabs
  • Marble slabs
  • Quartz / engineered stone
  • Floor & wall tiles

 Industrial Advantages

• High-speed continuous production
• Uniform polishing quality across slabs
• Reduced manual labor requirement
• Low abrasive consumption due to optimized pressure system
• Long service life with minimal maintenance
