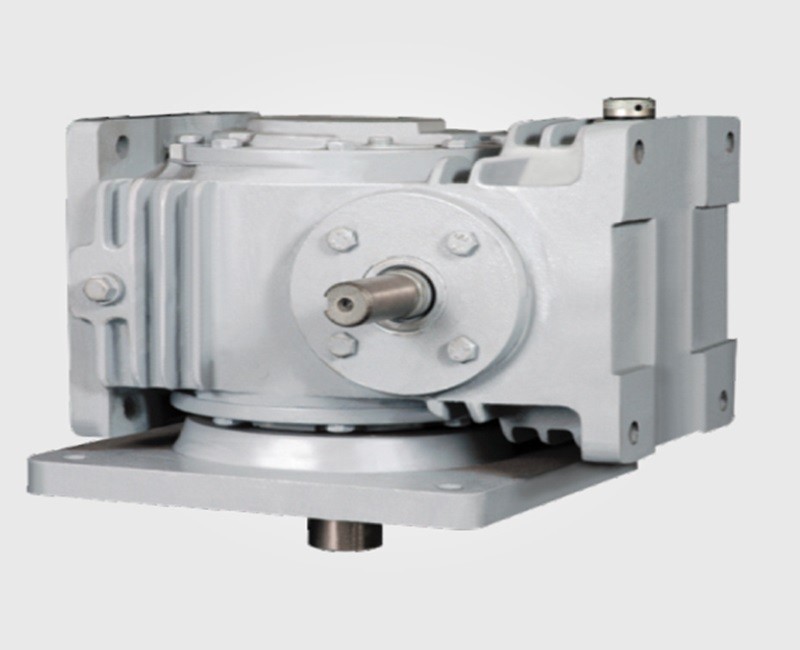

The GUH Type Worm Gear Unit is a durable and precision-engineered power transmission system designed to deliver high torque and efficient speed reduction in compact industrial setups. Built with a robust housing and high-quality worm and worm wheel assembly, it ensures smooth, quiet, and vibration-free operation even under heavy load conditions.This gear unit is widely used in industries such as material handling, conveyors, packaging, construction, and processing machinery. It offers excellent load-carrying capacity, high efficiency, and reliable performance in continuous operation environments. Its compact design allows easy installation in space-limited applications, while its strong thermal resistance and low maintenance requirements ensure long service life and reduced downtime.

General Specifications

• Type: GUH Horizontal Worm Gear Reduction Unit
• Gear Type: Worm and Worm Wheel (Right-angle drive)
• Application: Marble cutting machines, tile cutting machines, stone processing equipment, conveyors, construction machinery
• Mounting Style: Foot / flange / horizontal mounting options
• Orientation: Horizontal (GUH type)

 Construction Details

• Gear Case Material: High-grade cast iron (rigid, vibration resistant)
• Worm Shaft: Case-hardened alloy steel, ground & precision finished
• Worm Wheel: Phosphor bronze (high wear resistance)
• Bearings: Heavy-duty anti-friction roller bearings
• Housing Design: Fully enclosed, oil-tight, dust-proof

 Performance Specifications

• Power Range: Approx. 0.5 HP to 20 HP (varies by size)
• Torque Capacity: Medium to heavy-duty industrial torque output
• Speed Reduction Ratio: Typically 5:1 to 70:1 / 100:1 (based on model)
• Output Speed: Low-speed, high-torque output suitable for cutting & conveyor systems
• Efficiency: 60% – 85% depending on load and ratio

 Operating Features

• Smooth & silent operation
• High shock load resistance (suitable for stone cutting vibration)
• Self-locking property (prevents reverse motion in some applications)
• Low maintenance lubrication (oil bath system)
• Long service life under continuous operation

 Industrial Applications (Marble & Tile Sector)

• Marble cutting machines
• Tile cutting / polishing machines
• Stone processing conveyors
• Construction material handling systems
• Heavy-duty industrial drive systems

 Working Conditions

• Temperature Range: Suitable for normal industrial environments
• Duty: Continuous operation (24/7 capable in proper maintenance)
• Lubrication: Gear oil bath system recommended
