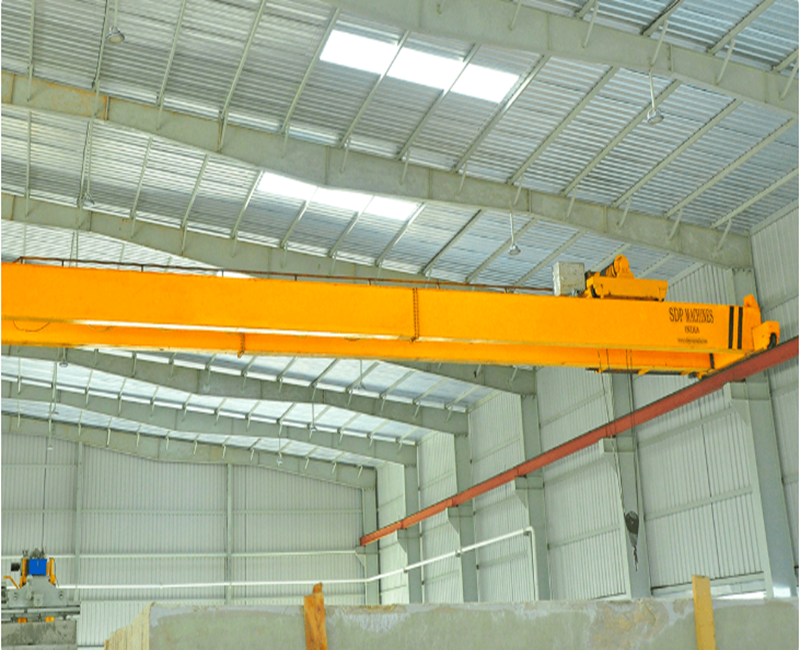

EOT (Electric Overhead Traveling) Cranes are high-performance material handling equipment designed for lifting, moving, and positioning heavy loads with precision and safety. These cranes operate on an overhead runway system and are powered electrically, ensuring smooth and controlled operations in industrial environments.EOT cranes are widely used in manufacturing plants, warehouses, steel industries, construction sites, and workshops for efficient load handling and increased productivity. They are available in various configurations such as single girder and double girder types, depending on load capacity and application requirements.Built with robust structure, advanced control systems, and safety features, EOT cranes reduce manual effort, improve operational efficiency, and ensure safe handling of heavy materials. They are ideal for continuous heavy-duty operations and offer long service life with low maintenance requirements.

 Crane Type

• Electric Overhead Traveling (EOT) Crane
• Single Girder / Double Girder (based on load requirement)

 Load Capacity

• Light duty: 1 Ton – 10 Ton (tiles, small marble bundles)
• Medium duty: 10 Ton – 25 Ton (marble blocks, stone slabs)
• Heavy duty: 25 Ton – 50 Ton+ (large marble blocks / quarry handling)

 Span (Working Width)

• 5 meters to 30 meters (customizable as per factory shed)

Lifting Height

• 6 meters to 30 meters (depends on plant height & stacking requirement)

 Travel Speed

• Crane travel speed: 20–100 m/min
• Trolley speed: 10–40 m/min
• Hoist lifting speed: 4–12 m/min

Power Supply

• 3 Phase, 415V, 50Hz AC supply
• Motorized operation with VFD optional (for smooth control)

 Structure & Design

• Heavy-duty steel fabricated bridge
• Box-type or I-beam girder structure
• Anti-corrosion painted finish (industrial epoxy coating)

 Hoisting System

• Wire rope hoist (standard for marble/stone industry)
• Hook or C-type lifting attachment (for slab handling)
• Overload protection system included
