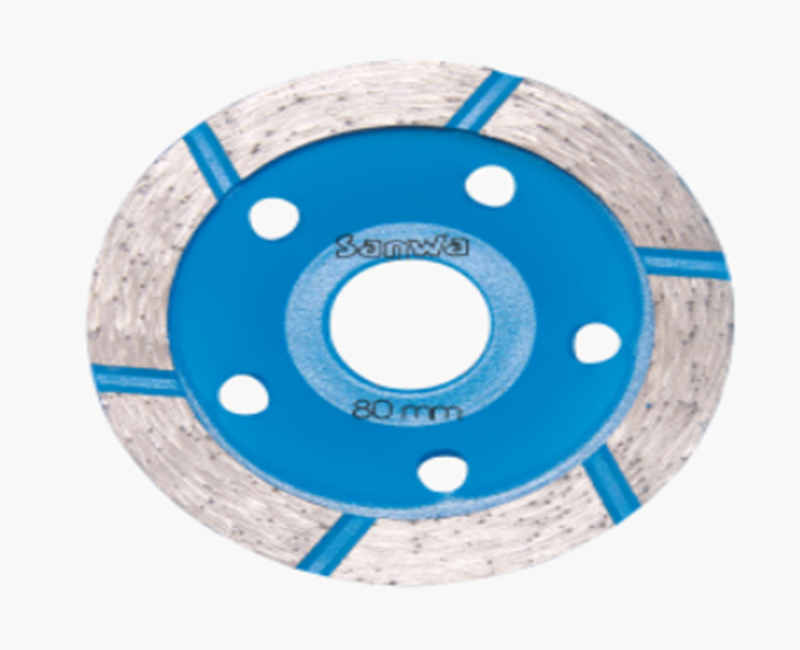

Diamond cup wheel is a heavy-duty grinding tool designed for fast and efficient surface preparation, smoothing, and finishing of hard materials such as concrete, marble, granite, tiles, and natural stone. It is manufactured with high-quality steel bodies and industrial diamond-embedded segments that provide superior grinding performance, durability, and long service life.This tool is widely used in construction and flooring applications for removing surface coatings, leveling uneven concrete, polishing stone surfaces, and preparing floors for further treatment. Diamond cup wheels deliver excellent material removal rates with smooth and controlled operation, reduced vibration, and high heat resistance. They are compatible with angle grinders and handheld grinding machines, making them suitable for both professional and industrial use. Available in different segment types such as single row, double row, turbo, and segmented designs, they ensure versatility for various surface grinding requirements.
Material: High-strength steel body with industrial diamond-embedded segments
Diamond Segment Type: Single row / Double row / Turbo / Arrow / PCD segments
Bond Type: Soft / medium / hard bond (based on material hardness)
Diameter Range: 4” (100 mm) to 9” (230 mm)
Segment Height: 5 mm / 6 mm / 7 mm (standard options)
Arbor Size: 22.23 mm / 20 mm / M14 / 5/8”-11
Grit Range: Coarse (30–40#) / Medium (60–80#) / Fine (100–120#)
Machine Compatibility: Angle grinder / handheld grinding machine / surface grinder
Cutting Method: Dry grinding / Wet grinding (wet preferred for stone)
RPM Range: Approx. 6,000 – 12,000 RPM (based on machine & wheel size)
Cooling System: Air cooling / water cooling (recommended for continuous work)
Usage Area: Construction, flooring preparation, tile fixing, marble polishing, stone fabrication
Features:
-
Fast material removal
-
Smooth and even surface finishing
-
Low vibration operation
-
High durability and wear resistance
-
Suitable for heavy-duty grinding work
-
Long service life with consistent performance
