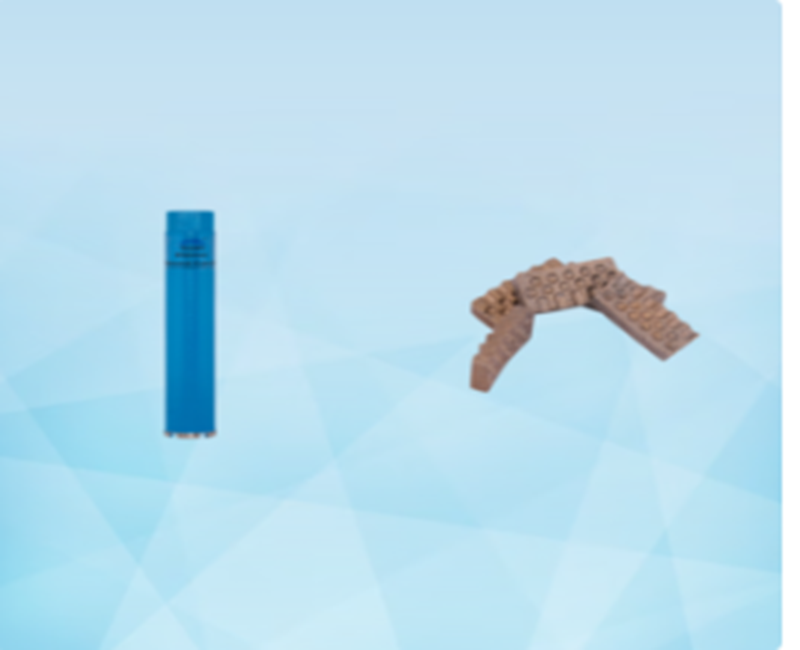

A diamond core drill is a high-performance drilling tool designed for making precise, clean, and circular holes in hard construction materials such as concrete, reinforced concrete, marble, granite, tiles, and natural stone. It uses industrial-grade diamond segments on the drill bit, which provide superior cutting efficiency, durability, and long service life even under heavy-duty working conditions.This tool is widely used in construction, plumbing, electrical, HVAC, and civil engineering applications for core cutting and hole drilling where accuracy and smooth finishing are required. It is suitable for both wet and dry drilling operations, depending on the material and job requirement. Available in various diameters and lengths, diamond core drills ensure vibration-free operation, high speed performance, and minimal material damage, making them an essential tool for professional construction work.
Material: High-strength steel body with industrial diamond segment coating
Diamond Type: Sintered / Vacuum brazed / Electroplated diamond segments
Segment Type: Crown segment / Continuous rim / Turbo segment
Diameter Range: 6 mm to 200 mm (custom sizes available)
Length: 60 mm to 400 mm (standard & extended core barrels)
Drilling Depth: Approx. 10 mm to 1000 mm (based on bit size)
Connection Types: M14 thread / 5/8"-11 UNC / G1/2 / BSP fittings
Drilling Method: Wet drilling (recommended) / Dry drilling (select materials)
RPM Range:
-
Small size: 1500–2500 RPM
-
Medium size: 500–1500 RPM
-
Large size: 300–900 RPM
Machine Compatibility: Handheld core drill machine / drilling rigs / angle grinders (M14)
Cooling System: Water cooling recommended for long life and dust control
Usage Areas: Construction, plumbing, electrical wiring, HVAC installation, stone fabrication
Features:
-
High precision drilling
-
Fast cutting speed
-
Low vibration
-
Chip-free smooth holes
-
Long tool life
-
Heat and wear resistance
