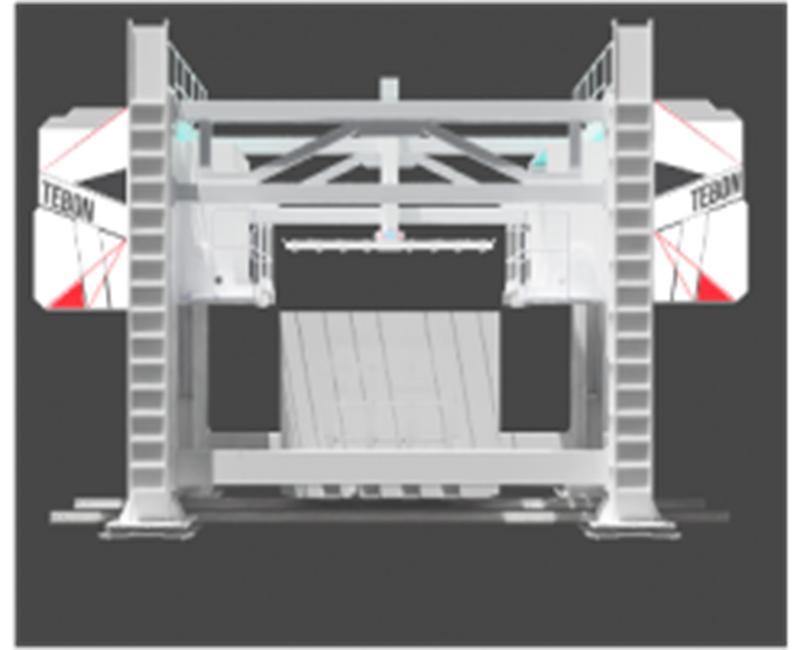

The Diamond Combination Wire Saw is an advanced industrial cutting machine designed for precision stone cutting. It features multiple diamond-embedded wires that work together to provide efficient, smooth, and accurate cuts on a variety of materials including marble, granite, limestone, and construction tiles. This combination of wires enhances cutting speed and accuracy while minimizing material waste, making it ideal for quarries, workshops, and construction projects.

Diamond Combination Wire Saw – Core Specifications

 Wire‑Type & Cutting Components

• Wire Structure: High‑tensile steel core with industrial diamond‑impregnated beads bonded via plastic, rubber or spring spacers to improve flexibility and bead retention.
• Diamond Bead Diameters: Common bead sizes include 6.3 mm, 7.3 mm, 8.2 mm, 8.8 mm, 9 mm, 10.5 mm, 11 mm, 11.5 mm, 12 mm and 12.5 mm, selected based on stone type and cutting depth.
• Beads per Meter: Typically 33–40 beads/m, where more beads per meter increase contact points and enhance cutting efficiency for stone and tile materials.
• Wire Diameter Range: ~0.35 mm – 12 mm depending on application — thinner for tiles and precision cuts, thicker for large blocks and harder stone.
• Customized Options: Diamond concentration and bead spacing can be tailored for specific cutting jobs (e.g., marble vs granite vs limestone).

 Cutting Performance & Operating Parameters

• Cutting Mechanism: Abrasive action by continuous moving diamond wire cutting through material by grinding.
• Typical Line Speed: Adjustable depending on material hardness — speeds ~18–28 m/s are effective for marble and granite quarry cutting.
• Cooling & Debris Removal: Water feed recommended during cutting to reduce heat and remove debris.
• Precision: Provides narrow kerf (small cut width) for minimal waste and smooth cut surfaces — ideal for construction stone and tile materials.

 Material Compatibility

Diamond combination wire saws are optimized for:

•  Marble blocks and slabs – clean precision cuts with minimal edge chipping.
•  Tiles & ceramic stone – thin wire sizes provide precise cuts for construction tile finishing.
•  Granite & limestone – heavier wire with more beads allows deeper cuts while maintaining finish quality.
•  Other materials such as concrete and refractory stone can also be handled with specialized diamond wire configurations.
