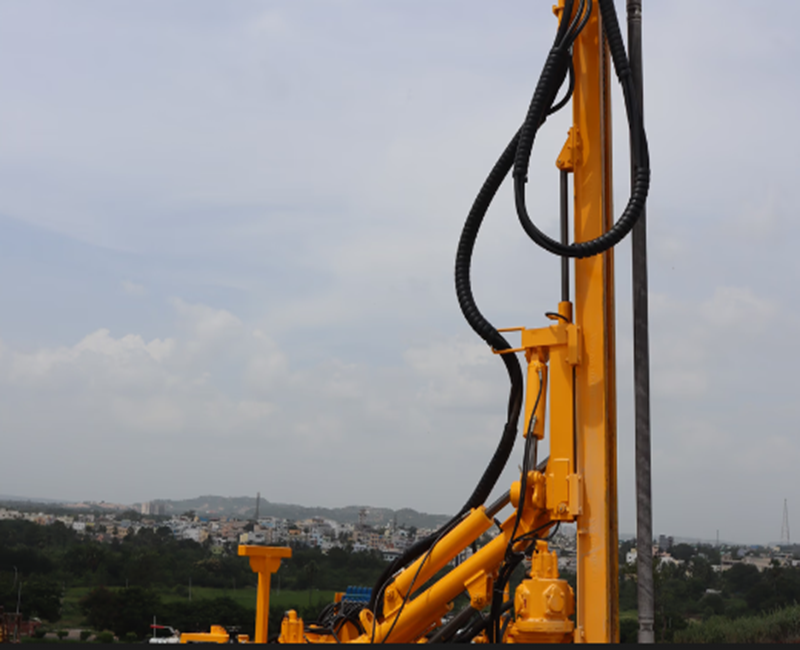

Crawler Drill CD 110 is a compact and efficient hydraulic crawler-mounted drilling rig designed for precise rock drilling in marble, granite, quarrying, mining, and construction applications. Built with a sturdy crawler chassis, it ensures excellent stability, easy maneuverability, and reliable performance even on rough and uneven terrains.Equipped with an advanced hydraulic system, the CD 110 delivers smooth operation, consistent power output, and accurate drilling control for small to medium-scale quarry and construction projects. Its compact design allows easy transport, quick setup, and flexible operation in confined working spaces.Crawler Drill CD 110 is widely used for blast hole drilling and quarry bench operations. It offers low maintenance, fuel efficiency, and durable performance, making it an ideal choice for continuous and cost-effective drilling in marble and tile industry applications.
Technical Specifications:
-
Model: CD 110
-
Type: Crawler-mounted hydraulic / pneumatic drilling rig
-
Drilling Method: DTH (Down-the-Hole) / Top Hammer (optional)
-
Hole Diameter Range: 76 mm – 115 mm
-
Drilling Depth: Up to 36 m
-
Drill Rod Size: 76 mm OD × 3 m length (standard DTH setup)
-
Rotation Speed: 0 – 50 rpm (approx.)
-
Feed System: Hydraulic chain feed system
-
Pull-Up / Pull-Down Force: Up to ~2200 kgf (approx.)
-
Tramming Speed: ~2.5 km/hr
-
Gradeability: Up to ~36°
-
Operating Weight: Approx. 3500 kg
-
Air Compressor Requirement: 450–500 CFM @ 150–200 PSI (DTH)
Performance Features:
-
High penetration drilling in hard rock formations
-
Strong crawler-mounted stability for rough terrain
-
Suitable for vertical, horizontal, and angled drilling
-
Efficient hydraulic system for smooth operation
-
Low maintenance and high productivity design
Applications:
-
Marble and granite quarry drilling
-
Tile industry raw material extraction
-
Blast hole drilling for stone blocks
-
Mining and infrastructure projects
-
Construction rock drilling operations
Packaging:
-
Fully assembled crawler drilling unit
-
Transport-ready structure with protective covering
-
Optional drill rods, bits, and accessories available
