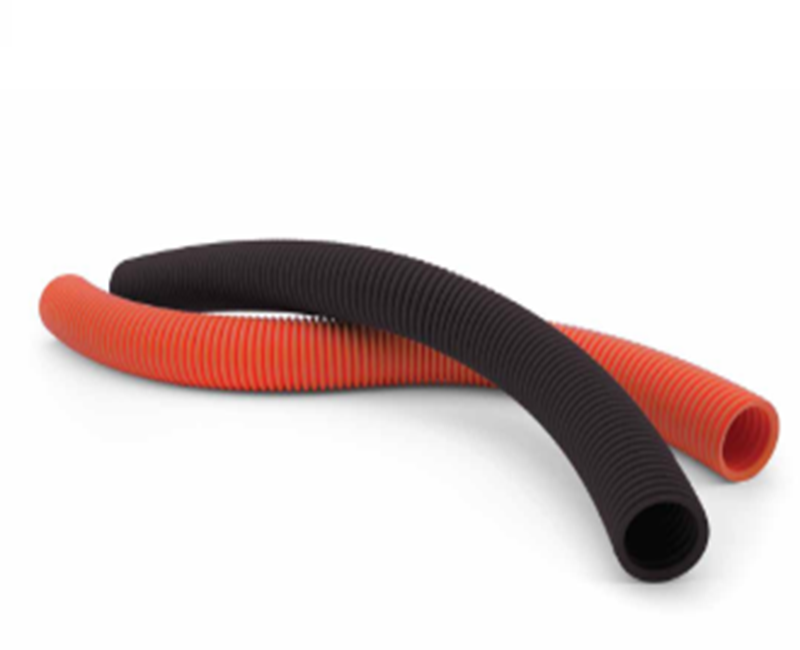

Cablefit DWC (Double Wall Corrugated) Pipes are advanced high-performance ducting solutions designed for the safe protection and efficient routing of electrical, telecom, and fiber optic cables in underground and surface installations. Manufactured using premium-grade HDPE (High-Density Polyethylene), these pipes feature a unique double-wall structure with a corrugated outer layer for superior strength and a smooth inner surface for easy cable pulling and reduced friction.Engineered for durability and reliability, Cablefit DWC Pipes offer excellent resistance to impact, soil pressure, corrosion, chemicals, and environmental stress. Their lightweight yet robust construction ensures easy handling, transportation, and quick installation, significantly reducing labor time and project costs.The flexible corrugated design allows easy alignment in complex underground routes, while the high ring stiffness ensures stability under heavy loads and traffic conditions. These pipes are suitable for both urban and rural infrastructure projects where long-term cable safety is essential.

Material:

• High-Density Polyethylene (HDPE)
• Virgin grade, UV stabilized, corrosion-resistant thermoplastic

Structure:

• Double Wall Corrugated (DWC) construction
  • Outer layer: Corrugated for high mechanical strength
  • Inner layer: Smooth for easy cable pulling and reduced friction

Standard:

• Manufactured as per IS 16205 (Part 24) and relevant telecom/electrical duct standards

Size Range:

• Pipes: 50 mm to 160 mm outer diameter (OD)
• Common sizes: 50 mm, 63 mm, 75 mm, 90 mm, 110 mm, 120 mm, 160 mm

Strength Class:

• Available in 450N / 750N load bearing classes
• High ring stiffness for underground cable protection

Standard Length:

• 6 meter straight lengths
• Smaller diameters available in coil form (100 m or more)

Joint Type:

• Push-fit coupler system
• Rubber ring sealing (leak-proof and secure jointing)

Color:

• Black / Orange (standard cable ducting colors)

Key Features:

• High impact resistance and load bearing capacity
• Lightweight for easy handling and installation
• Corrosion, chemical, and moisture resistant
• Non-flame propagating and UV stabilized (optional variants)
• Smooth inner wall for easy cable pulling
• Long service life with minimal maintenance
• Flexible yet strong structure for underground routing

Applications:

• Electrical cable protection systems
• Fiber optic and telecom cable ducting
• Underground power distribution networks
• Solar and smart city cable projects
• Road, railway, and infrastructure cable protection
• Industrial utility cable management
