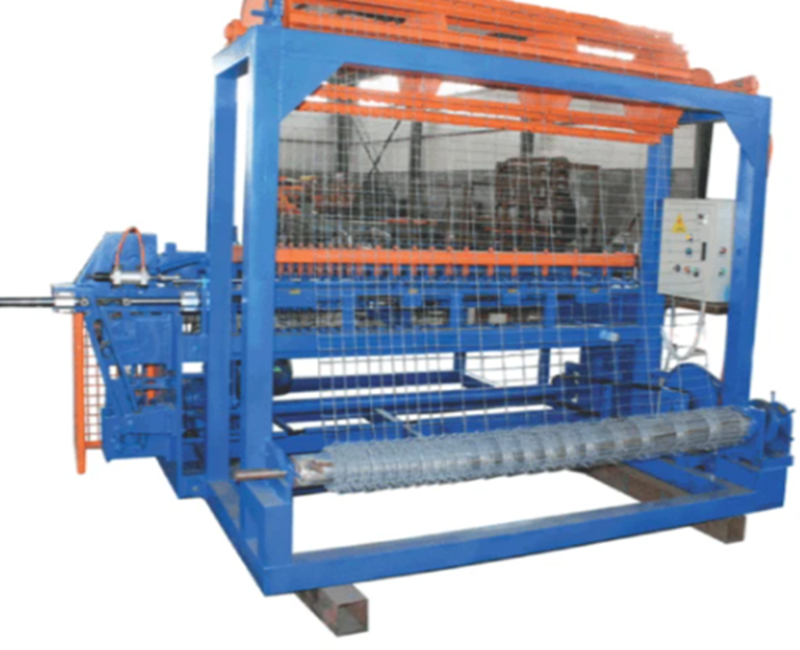

The Automatic Hinge Joint Fencing Machine is an advanced industrial machine designed for the efficient production of hinge joint wire fencing mesh. It automatically twists and wraps wire at each intersection point to form strong hinge-style knots, producing durable and flexible fencing rolls.This machine is widely used in agriculture, animal husbandry, highways, and boundary protection applications where strong and reliable fencing is required. It is suitable for producing fencing used to protect crops, livestock, and restricted areas.With fully automatic operation, the machine ensures high-speed production, uniform mesh spacing, and consistent knot strength. It is compatible with galvanized iron wire and high-tensile wire, making it ideal for long-lasting outdoor fencing solutions.Equipped with user-friendly controls and adjustable mesh settings, the machine reduces labor requirements while increasing production efficiency and output quality.

General Information

• Machine Type: Fully Automatic Hinge Joint Fencing Machine
• Application: Production of agricultural and livestock fencing mesh
• Automation Level: Fully Automatic
• Operation: PLC controlled / single or dual operator system

Wire Specifications

• Wire Diameter Range: 1.8 mm – 3.0 mm (varies by model)
• Side Wire Diameter: 2.0 mm – 3.5 mm
• Wire Material:
  • Galvanized Iron (GI) wire
  • High tensile steel wire
• Tensile Strength Range: 300 – 1400 N/mm²

 Mesh Specifications

• Mesh Width: 1400 mm – 2400 mm (up to 3 m in some models)
• Mesh Opening Size: 50 mm – 500 mm adjustable
• Mesh Height: Up to 2000 mm typical models
• Mesh Type: Hinge joint / knotted wire fencing
• Roll Length: 50 – 100 meters per roll

 Production Capacity

• Speed: Up to 45–60 rows per minute
• Output: Approx. 150 – 200 kg/hour (model dependent)
• Efficiency: High-speed continuous automatic production

 Power & Electrical System

• Motor Power: 4 kW – 11 kW (commonly 5.5 kW – 7.5 kW)
• Voltage: 220V / 380V / 415V / 440V, 3-phase
• Control System: PLC / inverter controlled system

 Machine Structure

• Machine Size: Approx. 3.0 m – 4.0 m (L) × 2.5 m – 3.5 m (W) × 2.3 m – 2.6 m (H)
• Weight: 3 – 4.5 tons (depending on model)
• Frame Material: Heavy-duty industrial steel
• Finish: Powder coated for durability

 Key Features

• Fully automatic knotting (hinge joint) system
• Adjustable mesh spacing and height
• Automatic wire feeding, weaving, cutting, and rolling
• Strong and flexible fencing output
• Low maintenance and high production efficiency
• Operator-friendly control panel
