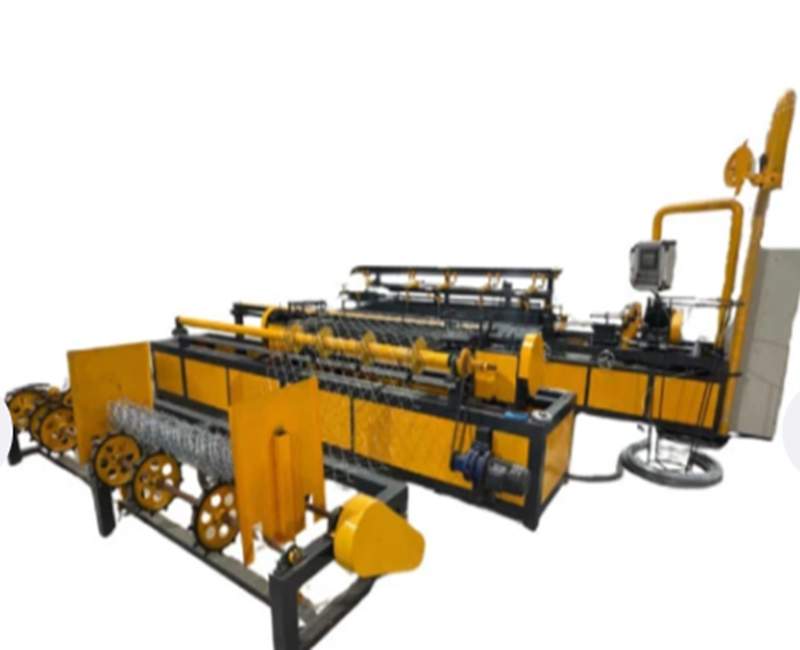

The Automatic Chain Link Fencing Mesh Machine is a high-performance industrial machine designed for the efficient production of chain link fencing mesh. It automatically converts metal wire into a strong, uniform diamond-pattern mesh through a fully automated weaving and interlocking process.This machine is widely used in the construction, agriculture, industrial, and security fencing sectors for producing durable fencing solutions for boundaries, farms, highways, sports grounds, and commercial properties.Built with advanced technology, it ensures high-speed operation, precise mesh formation, and consistent quality output. It supports different wire materials such as galvanized iron, PVC coated wire, and stainless steel, making it highly versatile for various fencing applications.The machine is equipped with user-friendly controls, adjustable mesh size settings, and automatic cutting and rolling systems, reducing labor costs and increasing productivity.

General Specifications

• Machine Type: Fully Automatic / PLC Controlled Chain Link Fencing Machine
• Application: Manufacturing diamond pattern chain link fencing mesh
• Automation Grade: Automatic
• Operation: Single operator required (PLC touch control system)

Wire & Material Specifications

• Wire Diameter Range: 1.6 mm – 4.0 mm (some models up to 5 mm)
• Wire Types:
  • GI (Galvanized Iron) wire
  • PVC coated wire
  • Stainless steel wire
• Tensile Strength Compatibility: Medium to high tensile fencing wire

 Mesh Specifications

• Mesh Opening Size: 25 mm – 120 mm (adjustable)
• Mesh Shape: Diamond pattern (interlocking spiral weave)
• Mesh Width: 1 m – 4 m (customizable up to 5 m in some models)
• Mesh Length: Adjustable via PLC control system
• Output Type: Continuous mesh roll

 Production Capacity

• Production Speed: 60 – 260 m²/hour (depending on model & wire size)
• Weight Output: Approx. 80 – 170 kg/hour (varies by wire thickness)

 Machine Power & Electricals

• Total Power Consumption: 7 HP – 15 HP (approx. 5 kW – 11 kW)
• Voltage: 380V / 415V, 3 Phase, 50 Hz
• Control System: PLC + Touch Screen Interface
• Drive System: Servo / Motor drive (model dependent)

 Machine Dimensions & Weight

• Machine Size: Approx. 4 m – 7 m (L) × 1.5 m – 2.5 m (W) × 1.5 m – 2 m (H)
• Machine Weight: 1800 kg – 4200 kg (depending on model)

 Key Features

• Fully automatic wire feeding and weaving system
• Automatic cutting and rolling unit
• Adjustable mesh size and width
• High-speed production with uniform mesh quality
• Heavy-duty steel structure for long life
• Low manpower requirement and easy operation

 Applications

• Construction site fencing
• Highway & road protection fencing
• Agricultural fencing
• Industrial security fencing
• Sports ground & boundary fencing
